Chain Grid Cleaning Machine Wastewater Pretreatment Equipment

MOQ:	1
Price:	$1000-$10000
Supply Capacity:	2

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

SQHJ

Model Number

GLG

Highlight:

Chain Grid Cleaning Machine

Wastewater Chain Grid Cleaning

Wastewater Pretreatment Chain Grid Cleaning

Product Description

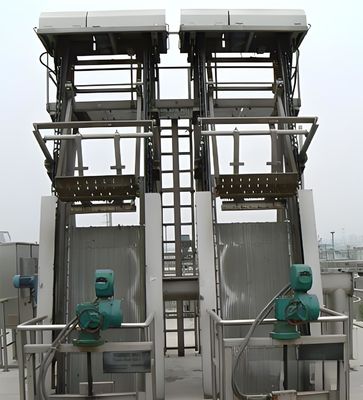

【Sewage pretreatment equipment】 Chain grid cleaning machine

Chain grate cleaning machines mainly include front rake type, back rake type, high chain type, etc. The grate is composed of a transmission device, frame, cleaning rake, skimming mechanism, synchronous chain, grate bar, etc. On both sides of the machine, there is a chain running synchronously. When the chain is driven by the driving device on the upper part of the cleaning machine, the rake frame is constrained by the chain hinge node and the guide rail to move in a plane. When the rake plate moves to the slag removal port, the slag removal device scrapes the dirt on the rake plate to the slag removal port under the action of gravity and falls into the garbage bin or slag rack car.

Technical parameters of GLG type high chain grid cleaning machine

型号 model	渠宽B(m) Canal width B (m)	栅条高度H1(m) Grid height H1 (m)	栅隙b(mm) Gap b (mm)	耙渣速度m/min Scraping speed m/min	安装角度 Installation angle	卸料高度H2(mm) Discharge height H2 (mm)	功率(kw) Power (kW)
GLG1	1	2(1～2.5每0.5一档)	20	4.5	75°	750	0.75
GLG1.2	1.2		30
GLG1.3	1.3		40
GLG1.4	1.4		50				1.1
GLG1.5	1.5		60
GLG1.6	1.6
GLG1.8	1.8						1.5
GLG2	2
GLG2.2	2.2
GLG2.4	2.4
GLG2.5	2.5						2.2
