Three Dimensional Elastic Filler 150mm 180mm Water Treatment Consumables

Three Dimensional Elastic Filler 150mm 180mm Water Treatment Consumables

MOQ: 1000
Price: Negotiate a price
Delivery Period: 10 work day
Payment Method: L/C, T/T, D/P
Supply Capacity: 100000
Detail Information
Place of Origin
CHINA
Brand Name
shanqing
Certification
/
Model Number
/
Highlight:

Three Dimensional Elastic Filler

,

Elastic Filler 150mm

,

Elastic Filler 180mm

Product Description

Water treatment consumables: Fillers : elastic three-dimensional filler



【product description】

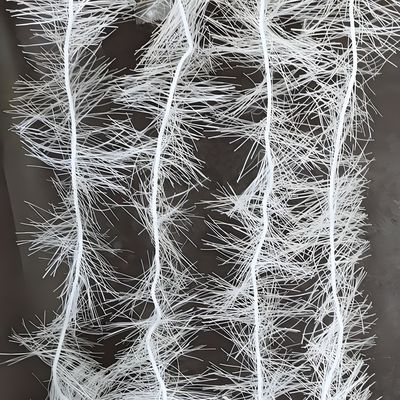

The elastic three-dimensional environmentally friendly filler selects several high-quality varieties of polyolefins and polyamides that are resistant to corrosion, heat and aging, and mixes them with hydrophilic, adsorbent, heat-resistant and other additives. A special wire drawing and wire wool making process is used to intersperse and fix the wire strips on the corrosion-resistant, high-strength central rope. Due to the excellent material selection and process formula, moderate rigidity and flexibility, the wire strips are arranged in a three-dimensional uniform radiation state, and the monomer of the suspended three-dimensional elastic water treatment filler is made. The water treatment filler can be stretched and spread in an all-round and three-dimensional manner in the effective area, so that the air, water and biological membrane can be fully mixed and contacted and exchanged. The biological membrane can not only be evenly implanted on each wire strip to maintain good activity and void variability, but also can obtain an increasingly larger specific surface area during operation, and can carry out good metabolism. This feature and phenomenon are incomparable to other water treatment fillers at present.

Three Dimensional Elastic Filler 150mm 180mm Water Treatment Consumables 0Three Dimensional Elastic Filler 150mm 180mm Water Treatment Consumables 1

【Features】

Compared with rigid honeycomb environmentally friendly fillers, three-dimensional elastic environmentally friendly fillers have greater pore variability and are not clogged; compared with soft environmentally friendly fillers, the material has a longer service life and does not stick to groups; compared with semi-soft environmentally friendly fillers, the specific surface area Large, fast to film and low cost. Therefore, this water treatment filler can be confirmed to be the fourth generation of high-efficiency, energy-saving and novel water treatment filler following various hard water treatment fillers, soft water treatment fillers and semi-soft water treatment fillers.

【Scope of application】

It is widely used as biological filler in biological contact oxidation tanks and hydrolysis acidification tanks.

【The main technical parameters】

Item number Unit length (m/m3) Unit weight(kg/m3) Film weight (kg/m3) Specific surface area (m2/m3)
Φ150×0.45 44 3.2 69 310
Φ150×0.50 44 3.4 65 296
Φ180×0.45 30 2.8 62 265
Φ180×0.50 30 3.1 57 250
Note: 1. The specifications are linear packing outer diameter × unit diameter. 2. The number of strings per unit is the number that can be hung per square meter.
