Suspended Center Drive Mud Scraper Integrated Waste Water Treatment

[ Mud scraper ] Suspended center drive mud scraper

Main use:

The ZG suspended center drive mud scraper is suitable for the discharge of mud from circular sedimentation tanks of medium and small diameters. The complete set of equipment is supplied, including transmission device, transmission shaft, steady flow cylinder, pull rod, small scraper, mud scraper, scraper arm, water outlet weir plate, control box, and fasteners. The mud scraper is driven by a central transmission device to rotate the transmission shaft, scraper arm, etc. The scraper on the scraper arm gradually scrapes the sludge from the edge of the pool to the mud pit in the pool, and discharges it out of the pool through the sludge discharge pipe.

Structure and working principle:

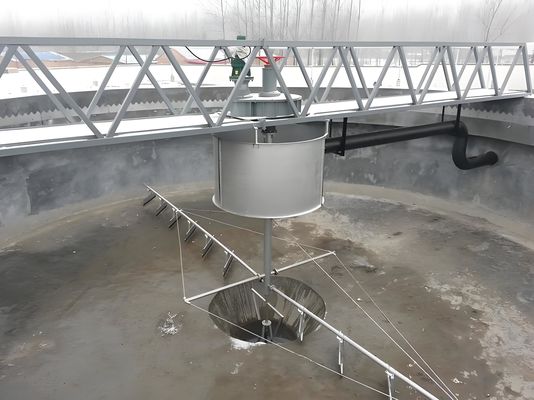

The central transmission mud scraper mainly consists of a transmission device, a stable flow cylinder, a transmission shaft, a scraper arm, a scraper plate, etc. The machine is equipped with a fixed platform spanning across the pool, and its entire load acts on the center of the working bridge during operation; The sewage flows uniformly to the surrounding areas through the stable flow tube in the center of the pool. As the flow area increases and the flow rate decreases, the sediment in the sewage settles at the bottom of the tank. The sludge scraper collects the settled sludge into the central sludge collection pit and uses water pressure to discharge it from the sludge pipe. The machine has a simple structure, smooth transmission, low power consumption, and good mud scraping effect, making it a good mud removal equipment.

Technical parameters of suspended center drive mud scraper
